0.60 inch Infrared Night Vision Device Core

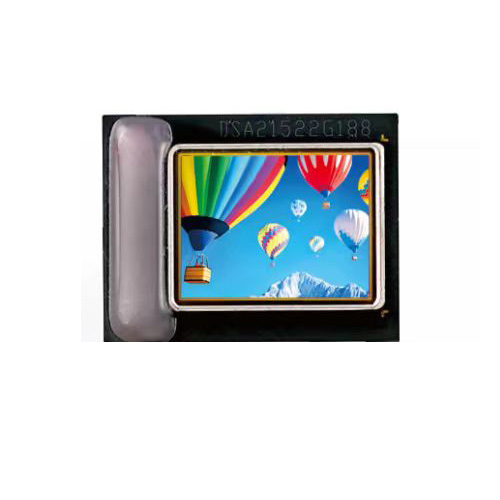

0.60 inch Infrared Night Vision Device Core produced by Shenzhen Optical Microsemiconductor Technology Co, Ltd. is a 1.5 cm (0.60 type) diagonal, 800 (RGB) 600 dot active matrix colour Micro OLED panel module with single crystal silicon transistors. To achieve tiny size, low weight, and clarity, the panel integrates panel drivers with logic drivers.
Send Inquiry
Product Description
The 0.60 inch Infrared Night Vision Device Core is a compact and portable device primarily used in security monitoring and military applications. It utilizes infrared technology to provide a clear view in low-light or no-light conditions. It is commonly employed in individual helmet displays, electronic sights, infrared night vision devices, thermal imagers, and electronic telescopes.
Parameters of 0.60 inch Infrared Night Vision Device Core
| Display Size | 0.60 inch |
| Resolution | 800×600 |
| Maximum brightness | 3000 cd/m² |
| Display Color | Full Color |
| Interface | RGB |
| Color Pixel Arrangement | vertical RGB strip |
| Active Area | 15.19mm×14.36mm |
Specifications of 0.60 inch Infrared Night Vision Device Core
●Active Pixels: 800600 (SVGA).
●Supports 24bit RGB8/16bit YCbCr digital video input.
●Frame rate: 25Hz to 120Hz.
●Color space conversion, as well as contrast and brightness adjustments.
●Low power usage due to the built-in VCOM generator.
●EEPROM built-in, Gamma correction, temperature compensation for VCOM with internal temperature sensor.
●Applications include a wide range of miniature near-eye display systems with high PPI, low power consumption, and a wide working temperature range.
●Supports 24bit RGB8/16bit YCbCr digital video input.
●Frame rate: 25Hz to 120Hz.
●Color space conversion, as well as contrast and brightness adjustments.
●Low power usage due to the built-in VCOM generator.
●EEPROM built-in, Gamma correction, temperature compensation for VCOM with internal temperature sensor.
●Applications include a wide range of miniature near-eye display systems with high PPI, low power consumption, and a wide working temperature range.
